Product features:
1.3 level precision back clearance, 7 sizes frame sizes 42-220 mm

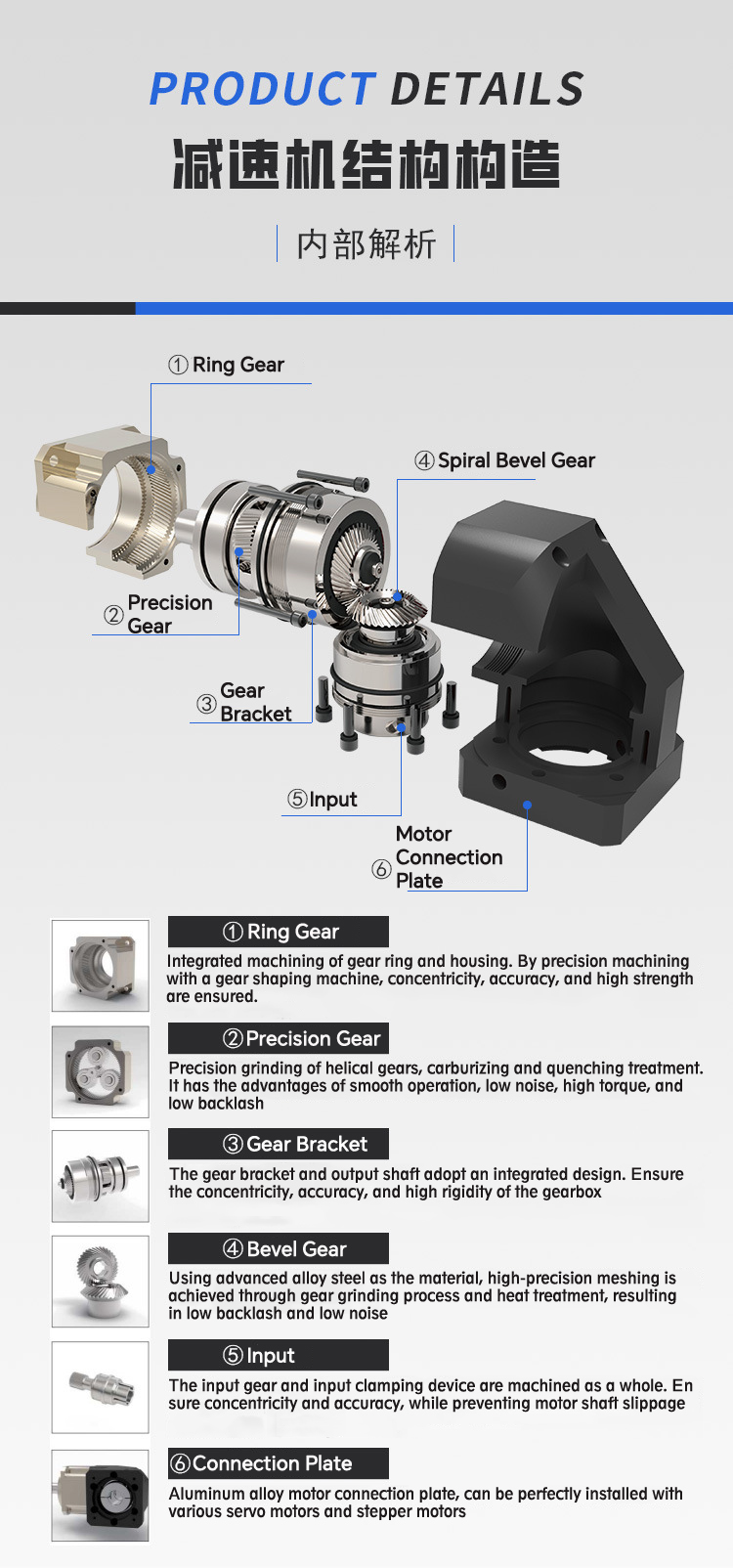

2. Unique heat treatment and grinding precision gears, with a reduction ratio of 3-200:1
3. Integrated planetary gear carrier and output shaft, high torsional rigidity and high radial load capacity
4. Maximum radial load capacity 31810 N; Maximum axial load capacity 18530 N
5. Low back gap, low noise, and high efficiency. Precision back gap up to 2 arc minutes, high-order application performance
6. Integrated formed gearbox, high precision, high output torque
7. Full needle arrangement planetary gear needle bearings
8. IP65 protection level, fully synthetic lubricating oil, lifetime maintenance free

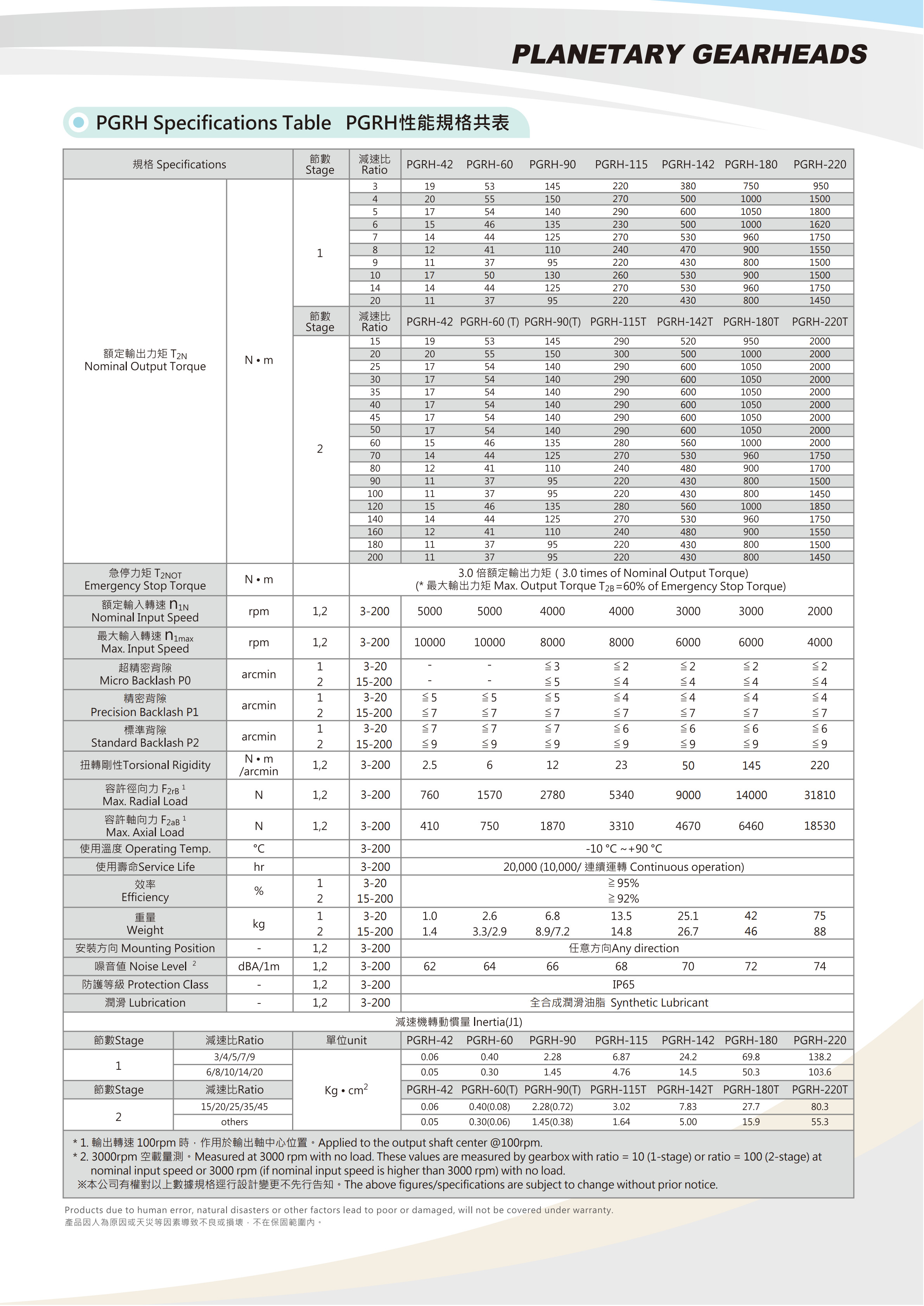

Specifications:

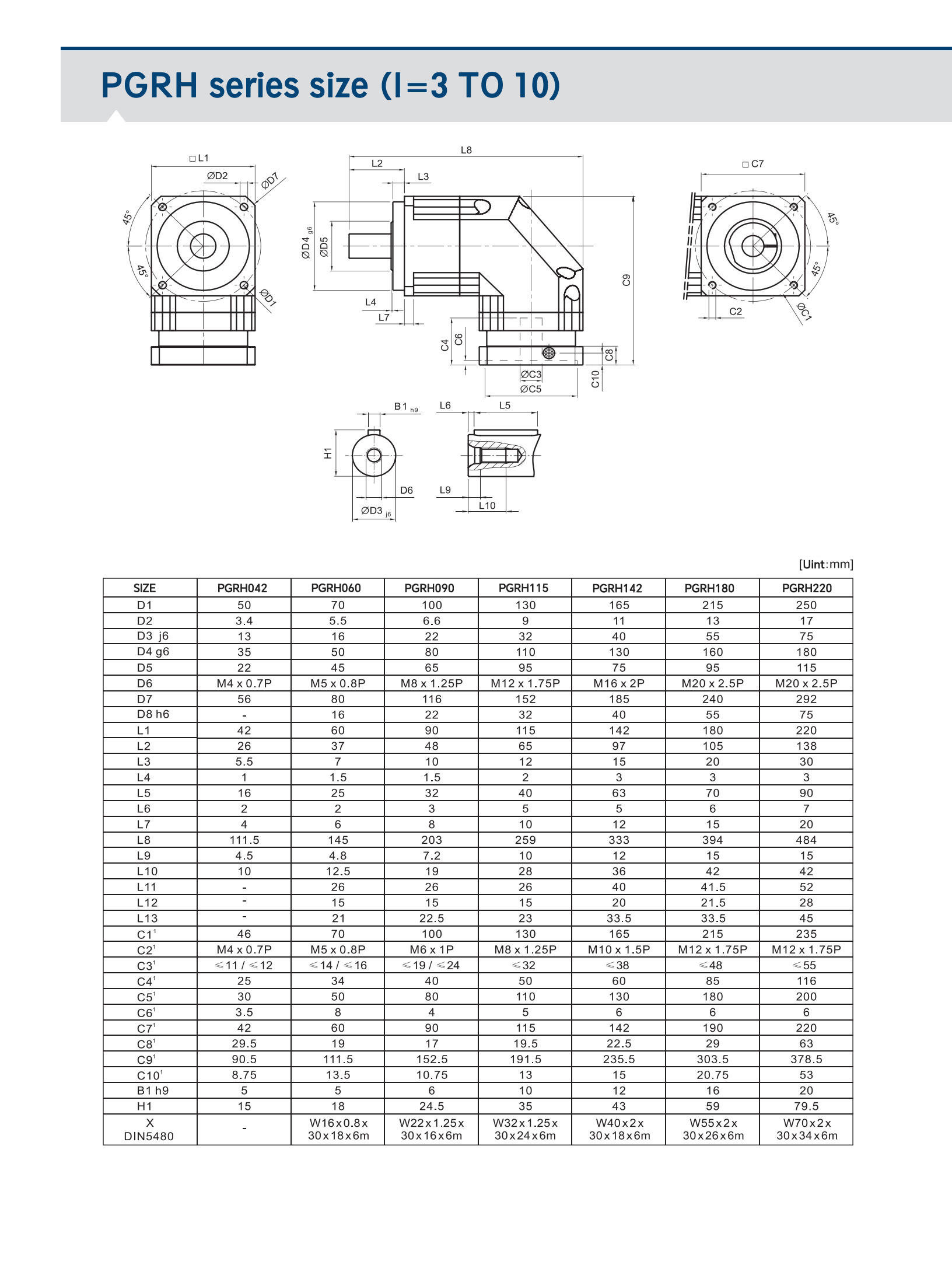

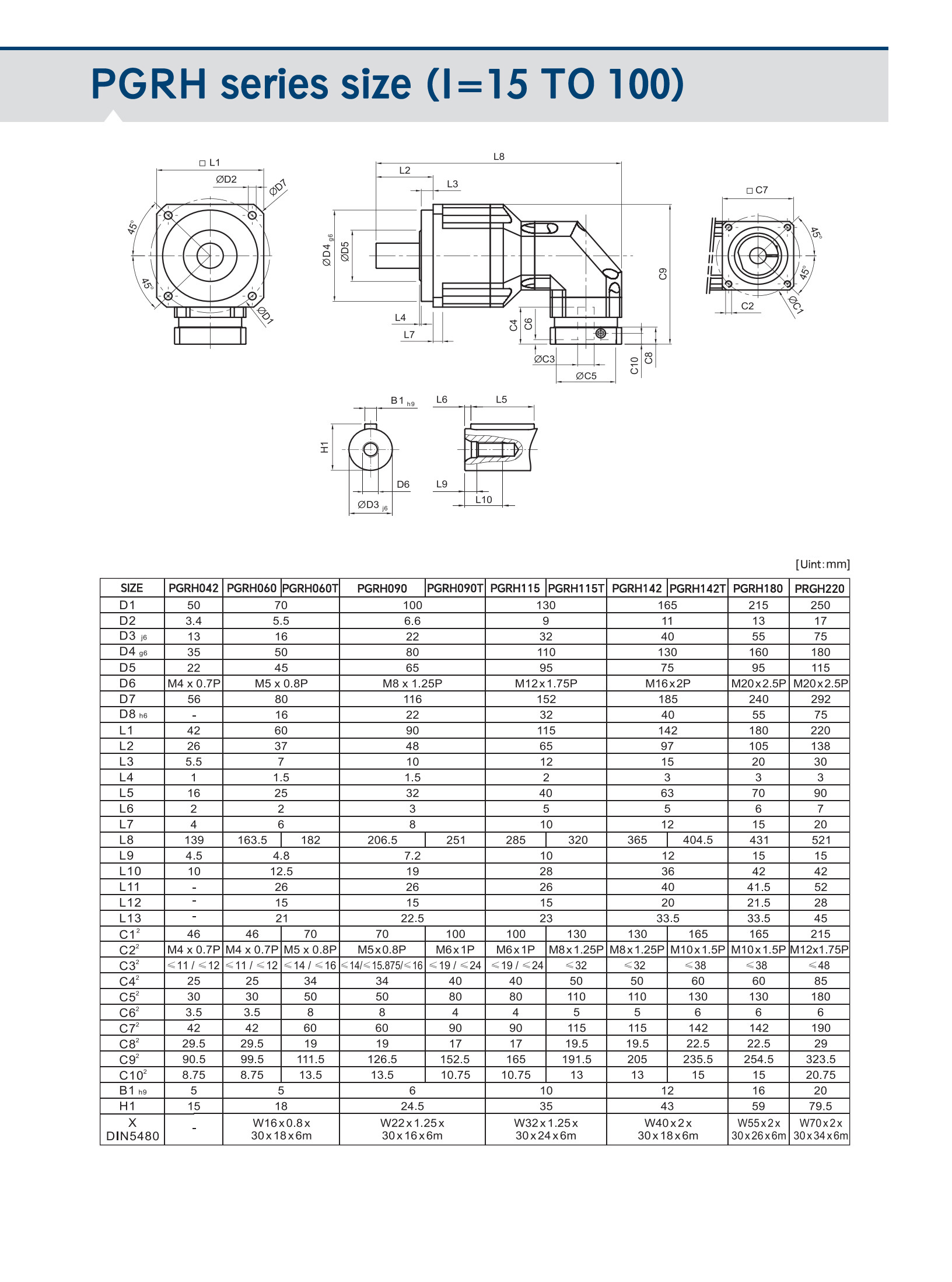

1. Size box number (mm): 42, 60, 90, 115, 142, 180, 220
2. Gear ratio: 3-200:1
3. Rated input speed (rpm): 2000-5000
4. Maximum input speed (rpm): 4000-10000
5. Backlash(arcmin): single segment 2-7, double segment 4-9
6. Noise value (dBA/1m): 62-74
7. Protection level: IP65

8. Lubrication: Fully synthetic lubricating oil
