ZPLF series economical right angle plane

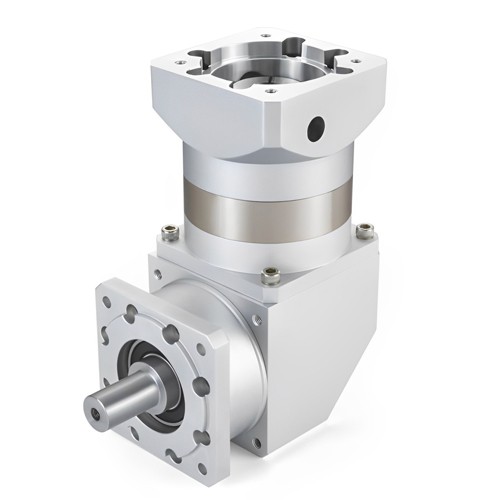

ZPLF series economical right angle planetary gearbox

The ZPLF series adopts a square mounting flange, a standard integrated gear mounting bracket and output shaft, full needle planetary gear needle bearings, and a maximum size frame size of 160 mm. Provide the most suitable performance output and economic benefits. The optimal backlash is less than 11 arc minutes, and the maximum reduction ratio is 1000:1. Low noise operation, right angle design saves installation space, suitable for general deceleration and torque enhancement applications.

Product Detail

Product features
1. Rated output torque 15-680 Nm
2. Special gear processing to achieve optimal accuracy and wear resistance
3. Full needle arrangement planetary gear needle bearings
4. High efficiency, low noise, radial load capacity 265-3700 N
5. IP65 protection level, fully synthetic lubricating oil, lifetime maintenance free
specifications

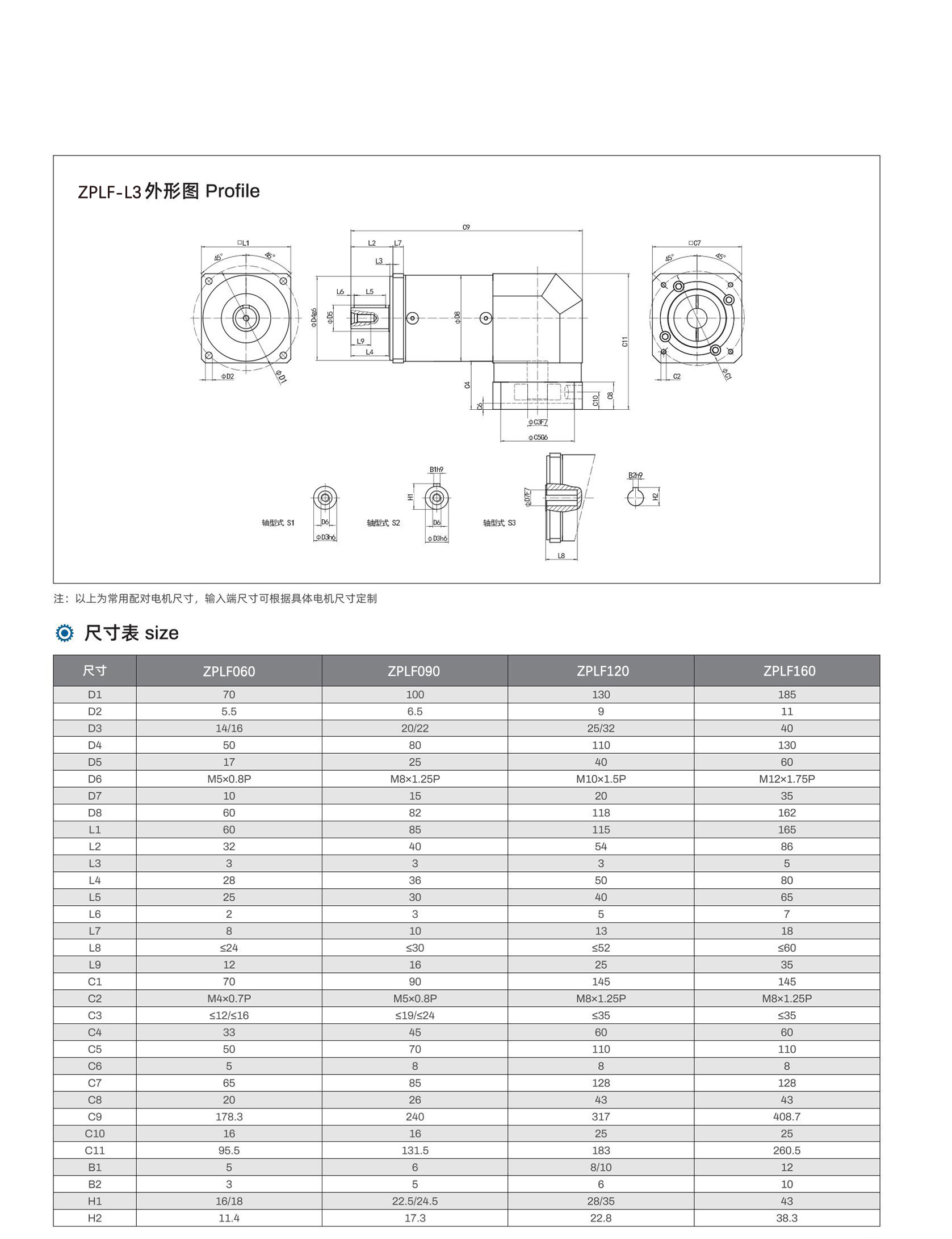

1. Size box number (mm): 60, 90, 120, 160

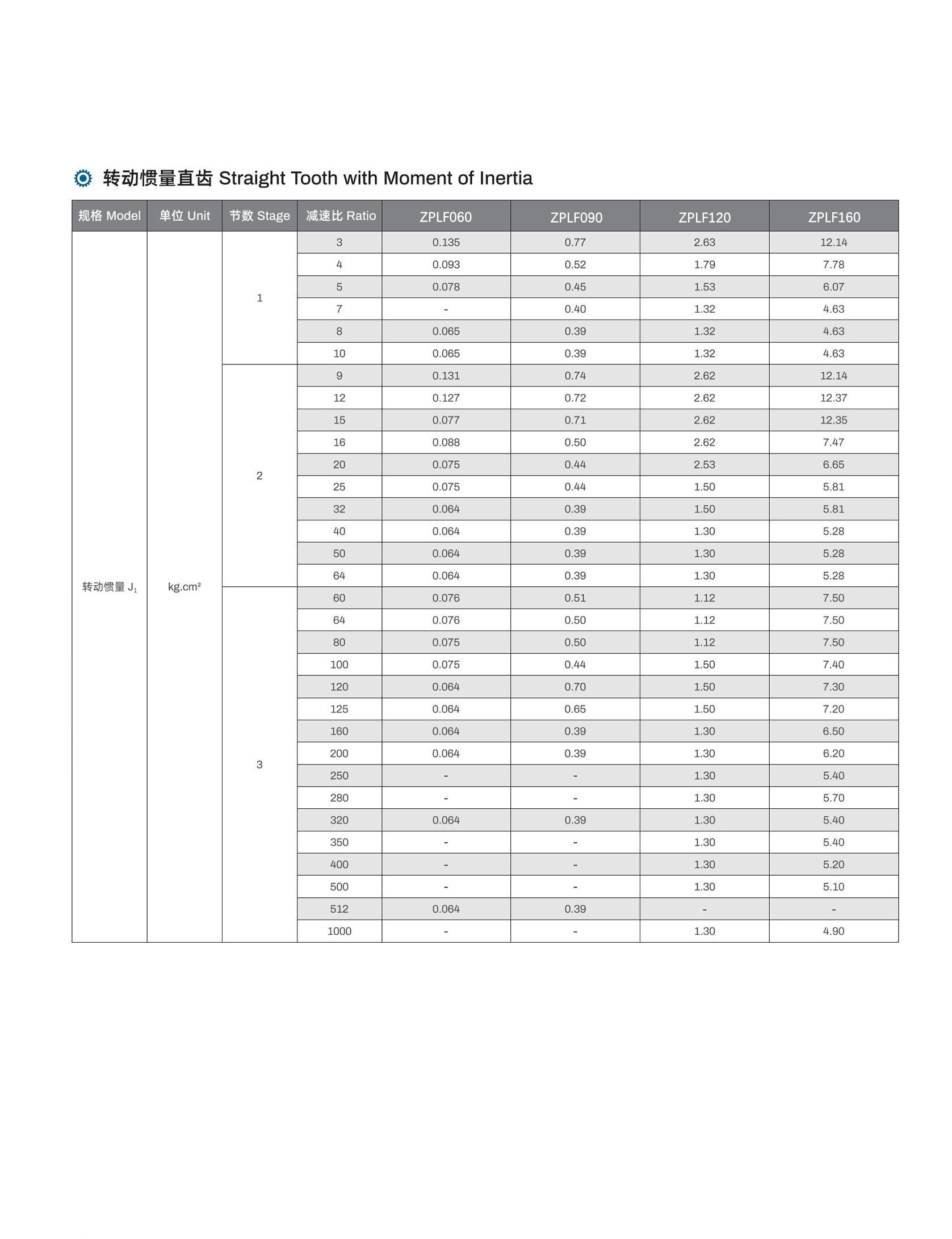

2. Gear ratio: 3-1000:1
3. Rated input speed (rpm): 2500-4500
4. Maximum input speed (rpm): 5000-7500
5. Arcmin: single-stage 11-15, two-stage 13-18, three-stage 20-22
6. Noise value (dBA/1m): 62-68
7. Protection level: IP65

8. Lubrication: Fully synthetic lubricating oil
