Feature

■ Direct connection can improve reliability and reduce costs

The workbench and robotic arm that need to be installed can be directly installed on the rotating platform. Compared to using mechanical parts such as pulleys, it can reduce the time and cost of mechanical design, component allocation, and belt condition adjustment

■ Motor configuration

Various brands of stepper motors or servo motors can be freely selected and matched

■ High precision positioning without backlash

No backlash, positioning accuracy ≤ 1min, repeated positioning accuracy can reach ± 5 arc seconds

■ Large caliber hollow structure

Wiring and piping are more convenient and concise, and the advantage of this feature is particularly prominent in complex wiring and piping environments



Application
Hollow rotary platform, also known as hollow rotary reducer, is widely used in various automatic detection equipment such as CNC indexing devices, automated production lines, robotic arm joints, and the fourth machining axis of machine tools.

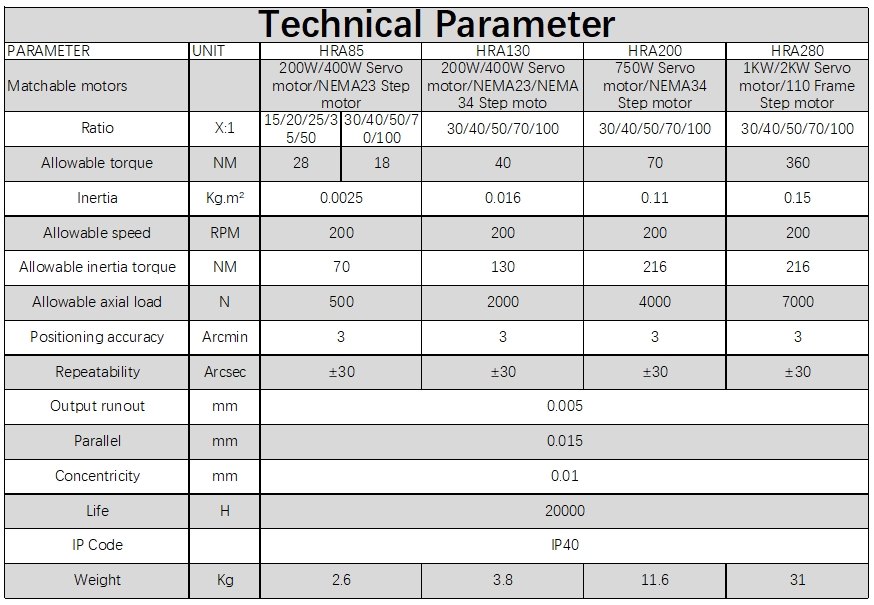

Size parameter

HRA SIZE
