INDEXING GEARBOX

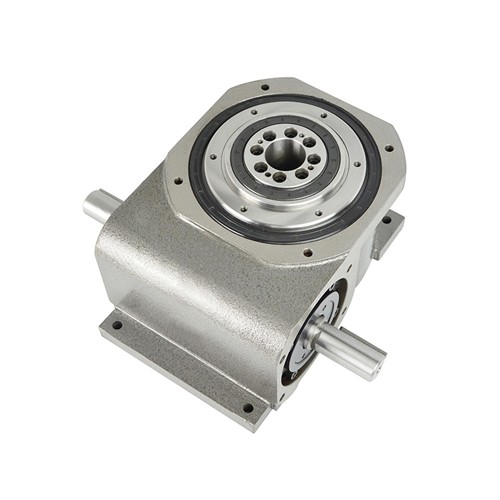

DA series cam indexing gearbox

Ultrathin Table Model

70DA / 90DA / 110DA / 150DA / 190DA / 230DA/330DA/450DA

The properties of the series are the same as the table model. It could be endured the heavy axial and radial load. The neces-sary equipment would be assembled directly to the flange and large diameter hollow shaft of the output of the series. Electric wire and pipe from the power source could be passed through the hollow shaft. The series are widely applied in automation apparatus and industrial machinery to work the intermittent motion.

  • Product Detail

Features

Flange Output

Dials, gears, sprockets, and other elements can be mounted directly to the output shaft.
Wide Product Lineup
Available in many sizes and indexing configurations.
High Rigidity
Flange output surface stays rigid in all directions.
Compact
Thin profile housing
Standard Equipped Gearmotor

The Alpha Series come with a variable frequency drive gearmotor with a hollow output shaft.

Applications


  • Welding machines for automotive parts
  • Tire assembly machines
  • Manufacturing equipment for solar panels
  • Various assembly and inspection machines

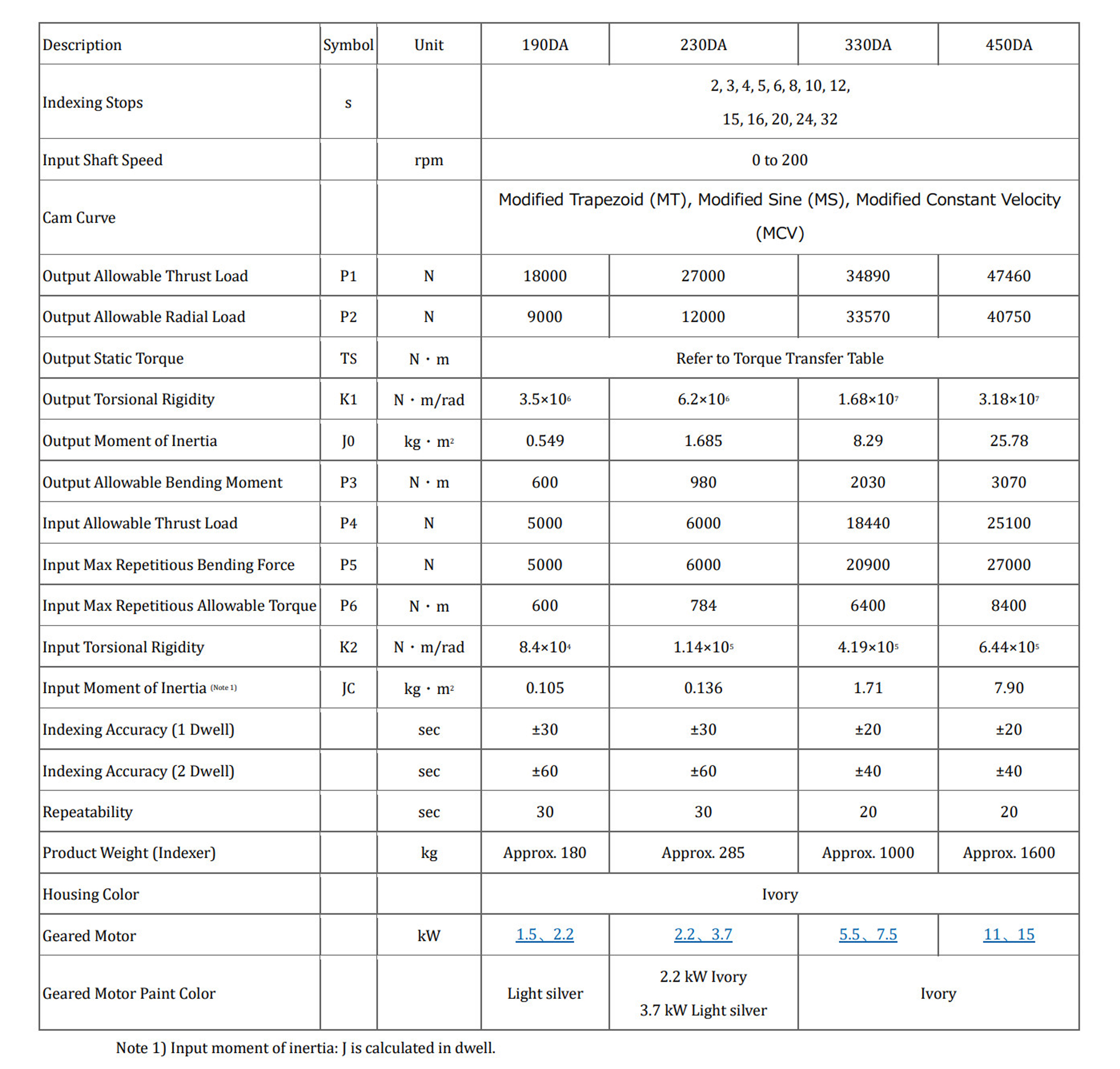

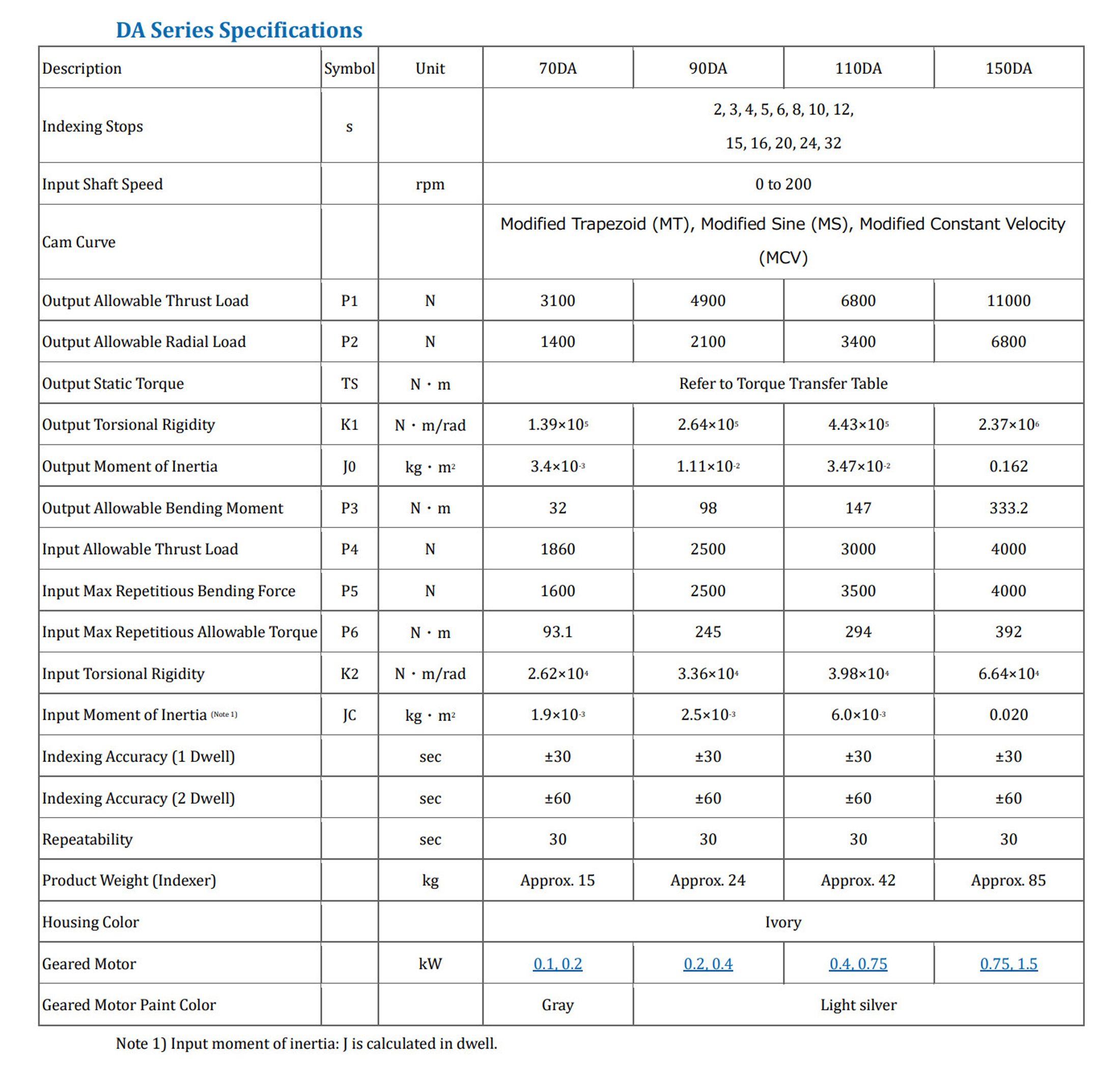

Gearbox dimensions:
